Products

AI Inference Infrastructure
Product Matrix

For AI inference and compute deployments at different scales, IFT provides a product matrix from standardized delivery units to server product lines, helping customers build sustainable inference infrastructure.

TOKEN FACTORY

Token Factory Systems

IFT turns the AI Factory concept into standardized Token Factory solutions for inference workloads. Based on each customer’s workload, site conditions, power resources, and deployment timeline, we integrate cluster planning, rack layout, networking, storage, power distribution, cooling, system integration, on-site tuning, and troubleshooting to deliver operational and scalable inference infrastructure with lower TCO and faster rollout.

Standardized

Breaks compute clusters, racks, networking, power distribution, and cooling into repeatable delivery modules.

End-to-End

Covers solution design, system integration, rack deployment, on-site tuning, troubleshooting, and project acceptance.

Fast Scale-Up

Supports expansion from local enterprise inference to 32-node standard units, scaled clusters, and IDC-level compute factories.

Low TCO

Optimizes around cost per token, long-term energy use, deployment cycle, and O&M complexity.

EDGE starts local enterprise inference, POD32 standardizes scale-up, SCALE supports large-scale expansion, SITE enables low-TCO site conversion, BOX supports fast deployment and multi-site replication.

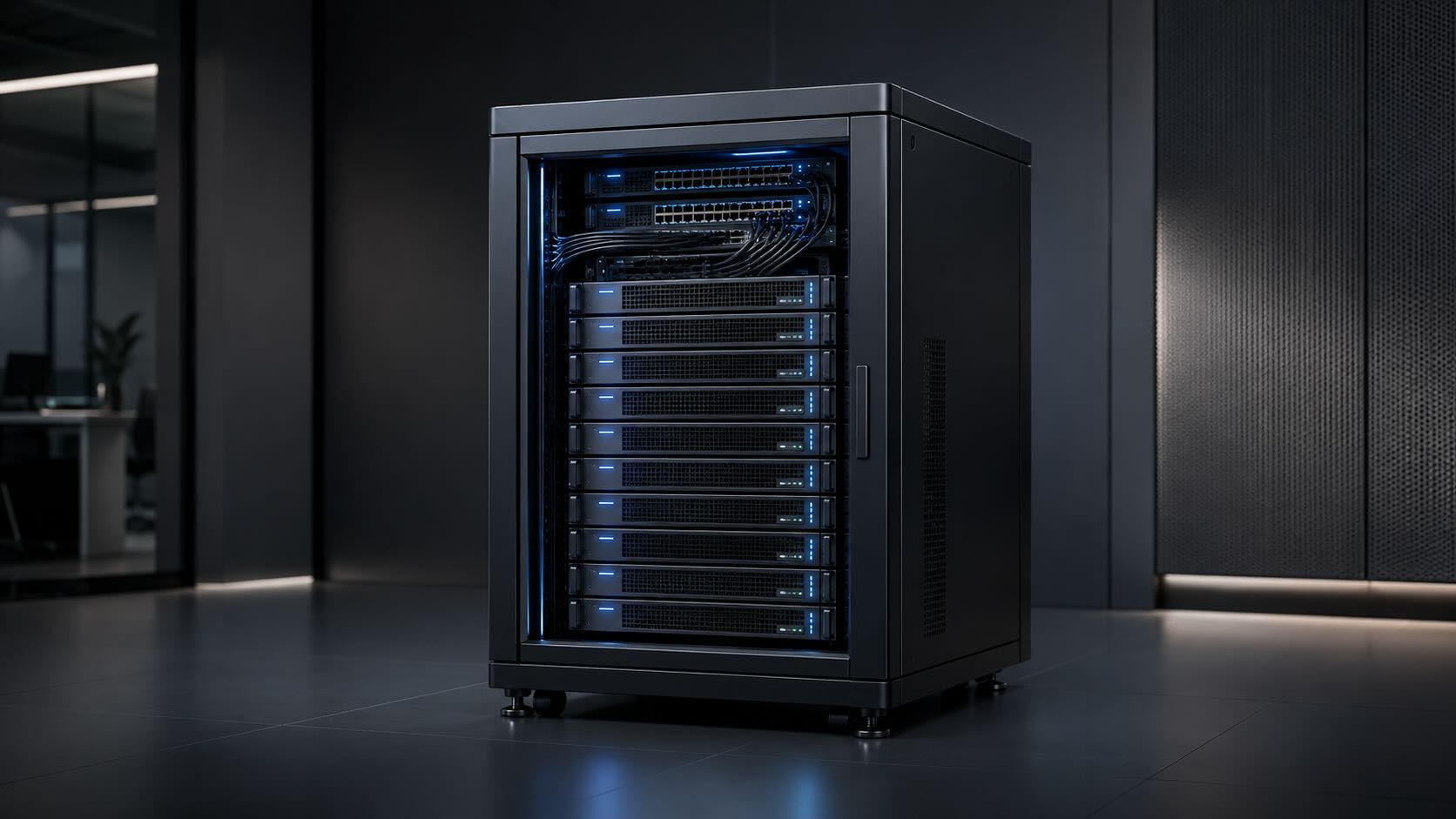

IFT-EDGE token factory product image
IFT-EDGE
IFT-EDGEToken Factory

Enterprise Edge Inference

For enterprise knowledge bases, AI agents, internal search, and workflow automation, enabling customers to deploy usable local inference quickly.

Best For
Private enterprise deployment / Data stays in-domain / Internal AI pilots
8–16 nodes
Local deployment
Data stays in-domain
Low-barrier launch
View Positioning+

Designed for enterprises moving from cloud token calls to local inference without building a large compute center yet. IFT-EDGE focuses on fast deployment, data security, and application pilots, helping customers get internal AI use cases running first.

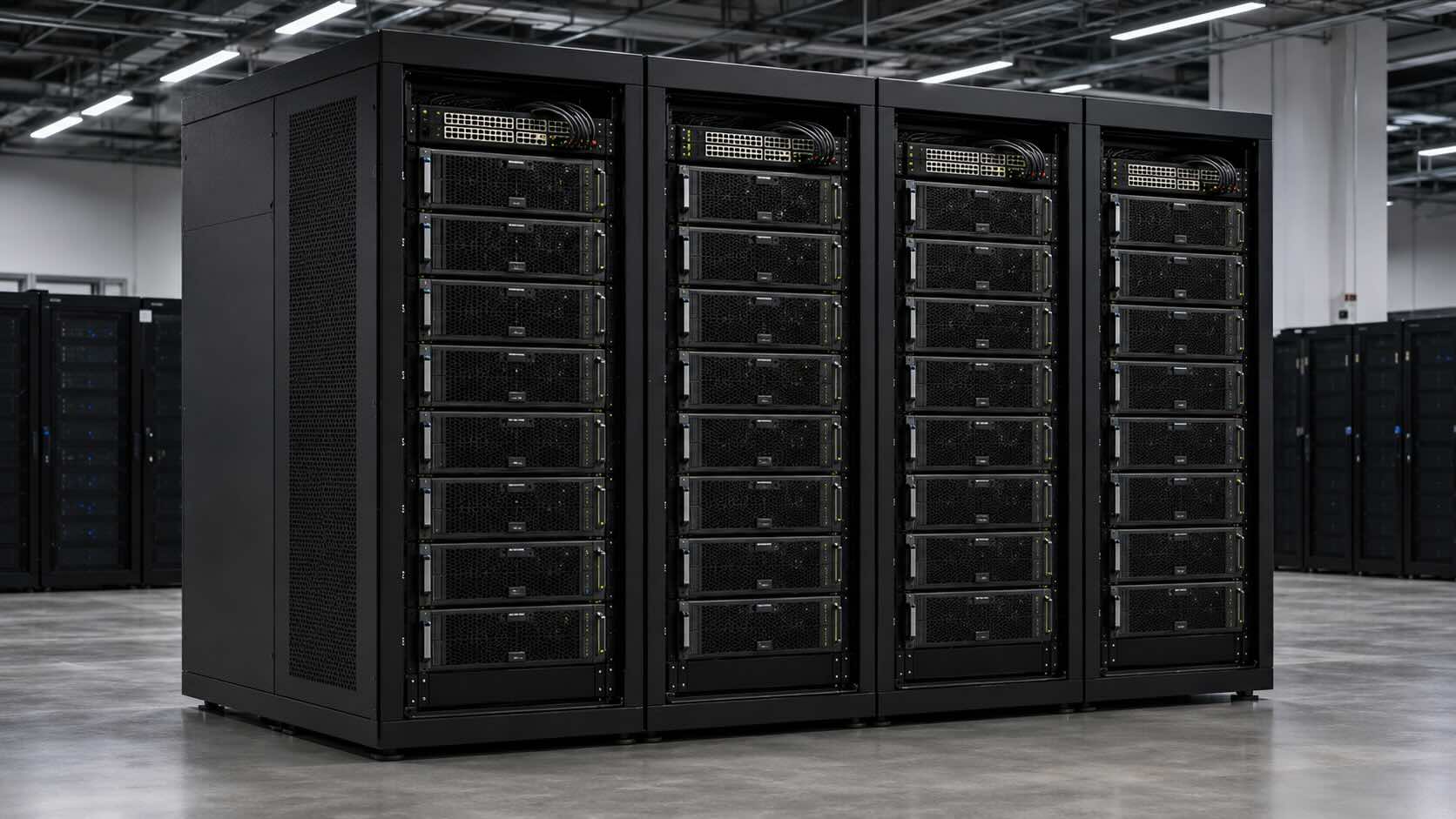

IFT-POD32 token factory product image
IFT-POD32
IFT-POD32Token Factory

32-Node Token Factory

Uses a 32-node inference cluster as the base module to build a repeatable, scalable, and fast-deploying token production unit.

Best For
Mid-to-large enterprises / Cloud service providers / Campus compute nodes / AI application companies
32-node unit
Standardized module
Air / liquid cooling
Fast expansion
View Positioning+

Built for mid-to-large customers that already have site, power, or rack resources and need production-grade inference capacity quickly. IFT-POD32 turns complex cluster delivery into standardized modules for fast deployment, replication, and scale-out.

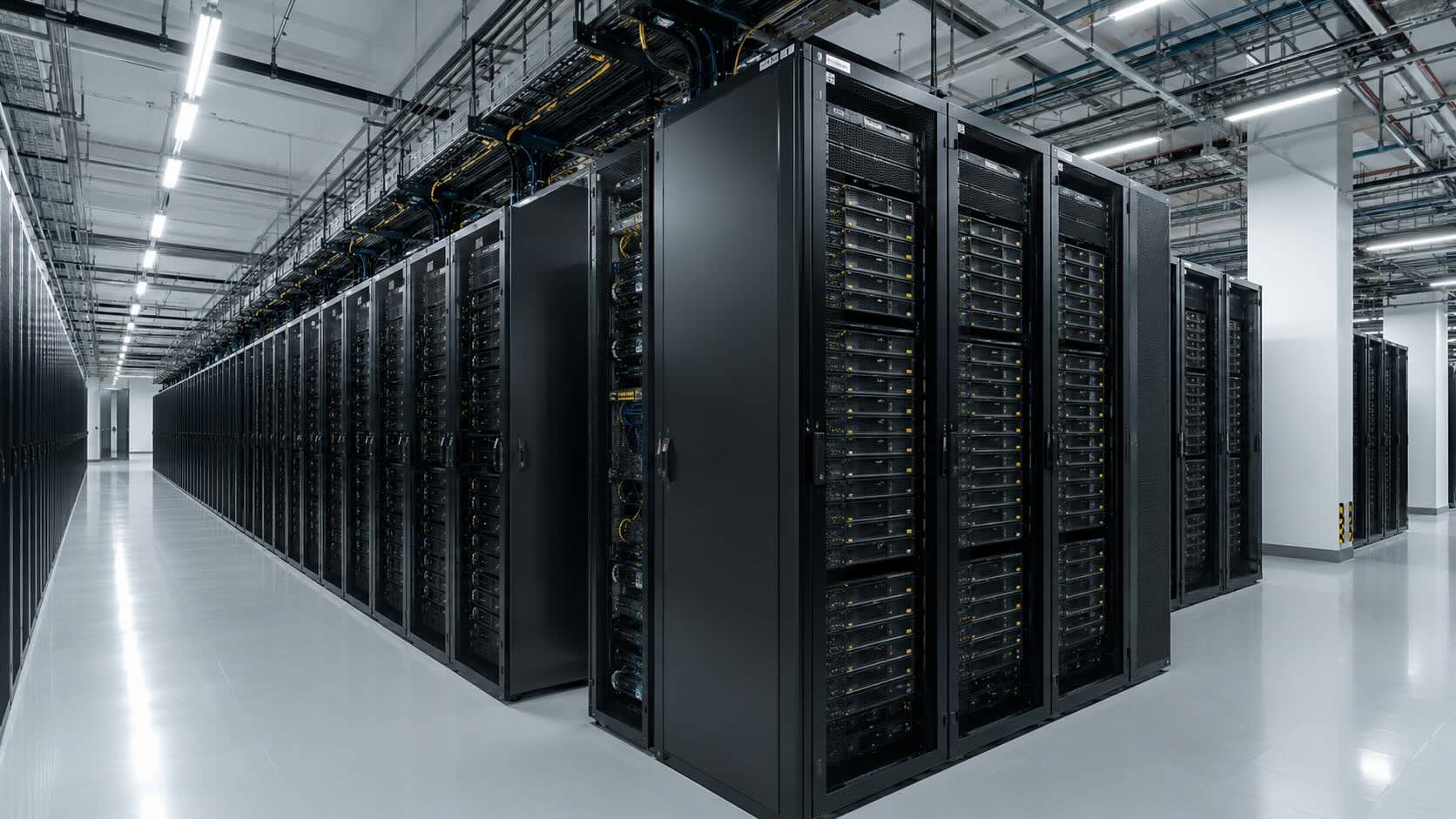

IFT-SCALE token factory product image
IFT-SCALE
IFT-SCALEToken Factory

Scaled Inference Platform

For model companies, internet platforms, and compute operators, supporting growth from validation clusters to thousand-GPU and ten-thousand-GPU inference clusters.

Best For
Model companies / Internet platforms / Compute operators / Large-scale inference
Multi-Pod expansion
Thousand-GPU / ten-thousand-GPU clusters
Architecture adaptation
On-site troubleshooting
View Positioning+

Designed for customers with defined inference workloads and high requirements for cluster stability, scalability, and on-site problem solving. IFT-SCALE focuses on architecture adaptation, performance validation, stability tuning, and closed-loop field issue resolution in large cluster deployments.

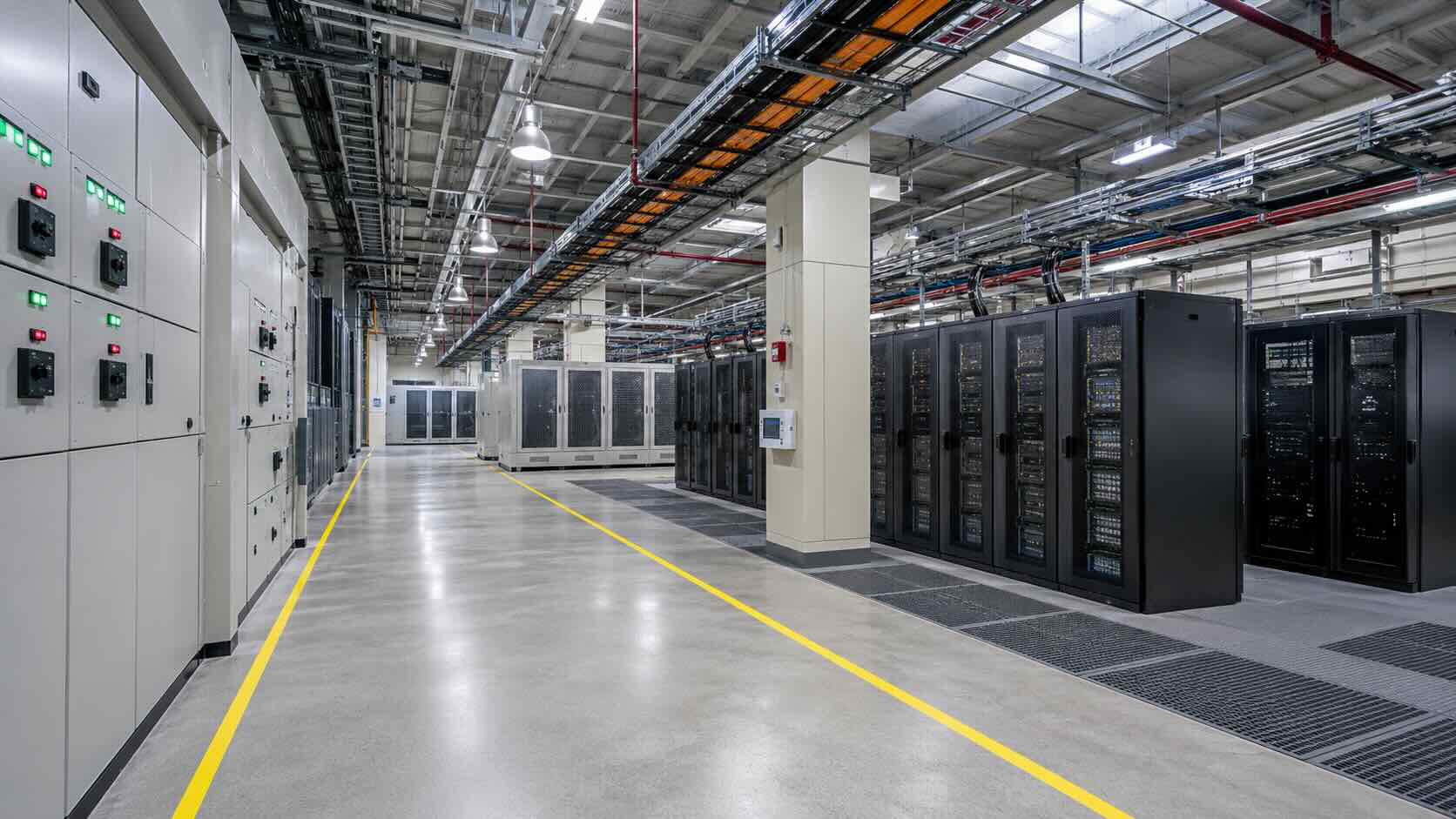

IFT-SITE token factory product image
IFT-SITE
IFT-SITEToken Factory

Low-TCO Site Conversion

Converts existing IDCs, factory buildings, or campus spaces into low-TCO compute factories based on site conditions, power, cooling, and workload requirements.

Best For
Existing IDCs / Factory buildings / Campus spaces / Energy-side sites
Site-level design
Low-TCO optimization
Power & cooling
Integrated delivery
View Positioning+

Designed for customers that already own site, power, or rack resources but lack AI inference infrastructure design and deployment capability. IFT-SITE reuses existing assets, lowers buildout barriers and long-term operating costs, and turns traditional sites into infrastructure for sustainable token production.

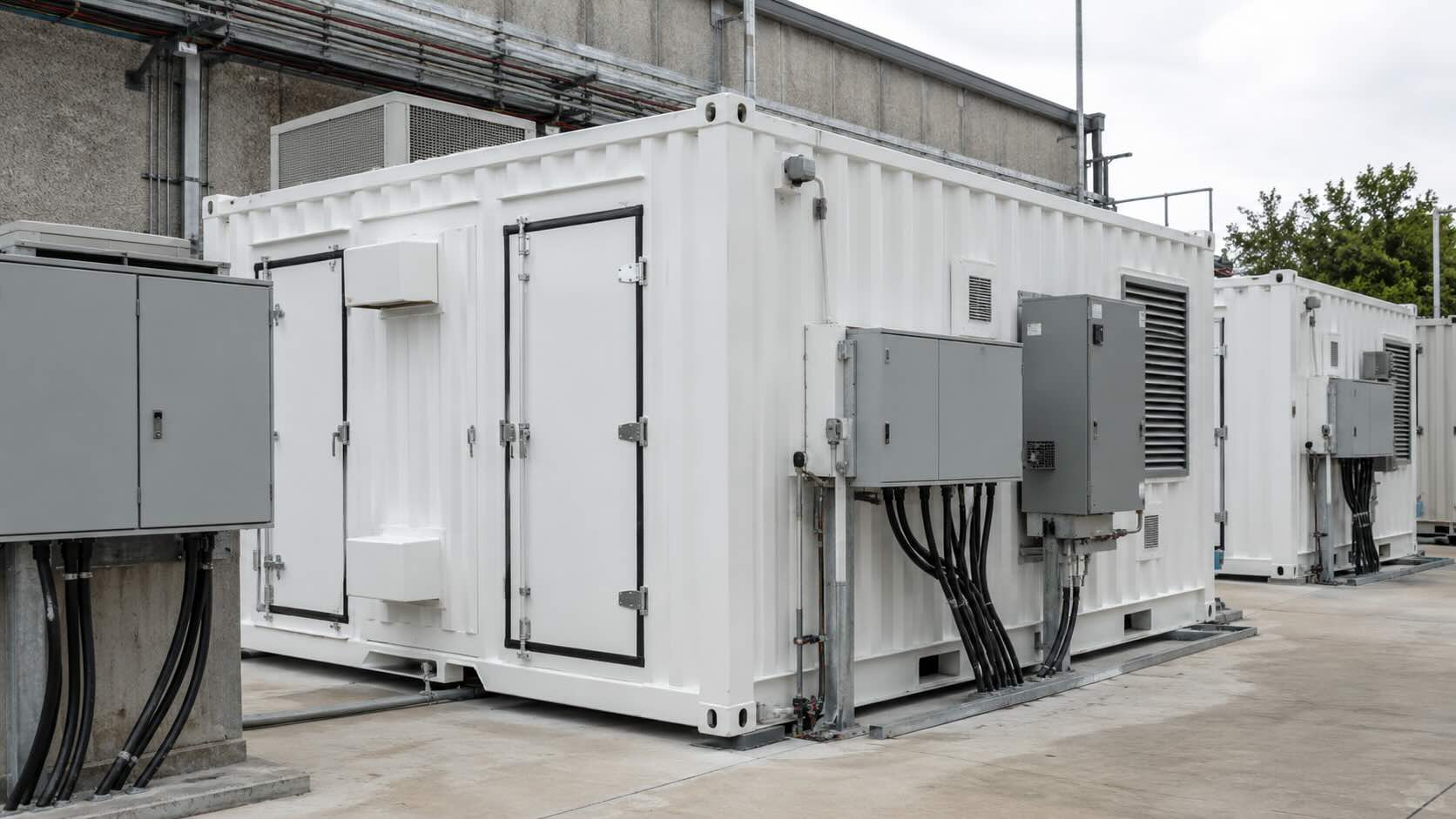

IFT-BOX token factory product image
IFT-BOX
IFT-BOXToken Factory

Containerized Token Factory

For overseas delivery, temporary expansion, and multi-site replication, using pre-integrated modules to form operational inference compute units quickly.

Best For
Overseas deployment / Temporary expansion / Energy-side sites / Multi-site replication
Containerized deployment
Factory pre-integration
Fast connection
Movable expansion
View Positioning+

Designed for customers with tight site construction schedules or a need to build inference capacity quickly in overseas, energy-side, or temporary scenarios. IFT-BOX reduces on-site complexity through pre-integration and modular delivery, accelerates compute go-live, and supports later relocation or multi-site replication.

Server Products

Servers

Covers 6U, 5U, 4U, and 2U server form factors for GPU inference, private enterprise clusters, high-density compute nodes, and data center delivery.

6U AI Servers

6U Servers

For high-density GPUs, liquid cooling, high-power AI servers, and data center delivery.

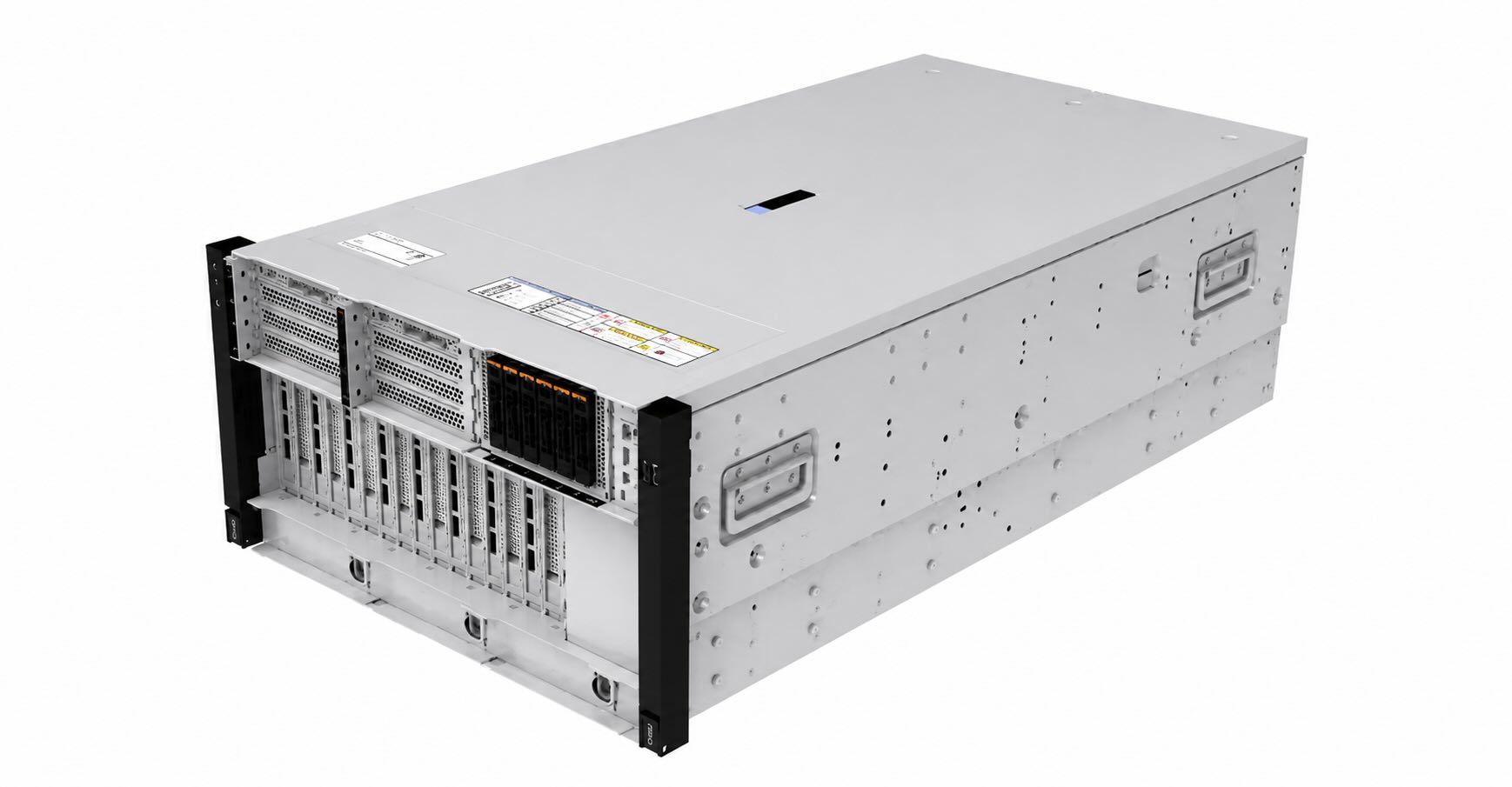

IFT0034A server product image
IFT0034A
IFT0034A6U

6U Intel AI Server

A 6U dual-socket server for Intel Xeon platforms, suitable for high-power GPUs, complex cooling, and enterprise AI inference node deployment. The 6U chassis provides greater thermal headroom for long-term stability.

Best For
AI inference nodes / High-power GPU deployment / Private clusters / Data center delivery
6U dual-socket form factor
Dual-socket Intel Xeon platform
32 DDR5 5600MT/s DIMMs
CRPS redundant power support
View Full Specs+

Core Configuration

Form Factor
6U dual-socket server.
Processor
Supports two 4th / 5th Gen Intel Xeon Scalable processors, up to 64 cores per CPU and up to 385W TDP.
Memory
Intel platform supports up to 32 DDR5 5600MT/s DIMMs.
Chassis Size
850mm(D) × 438mm(W) × 263.6mm(H).

Storage & I/O

Internal Storage
Supports one M.2 SATA / NVMe device.
Front Storage
Supports 4 Anybay drives and 2 NVMe drives.
Right Ear
Supports 2 USB 3.0 / USB 2.0 ports.
BMC
Supports RJ45 management port, USB 3.0, Mini-DP, and Micro USB.

Power, Cooling & Management

Power
Supports 2000W / 2700W / 3200W CRPS power supplies with 3+ redundancy, 220V AC, and 240V HVDC.
Cooling
Default 2 groups of 5 × 056 fans, with N+1 redundancy.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.

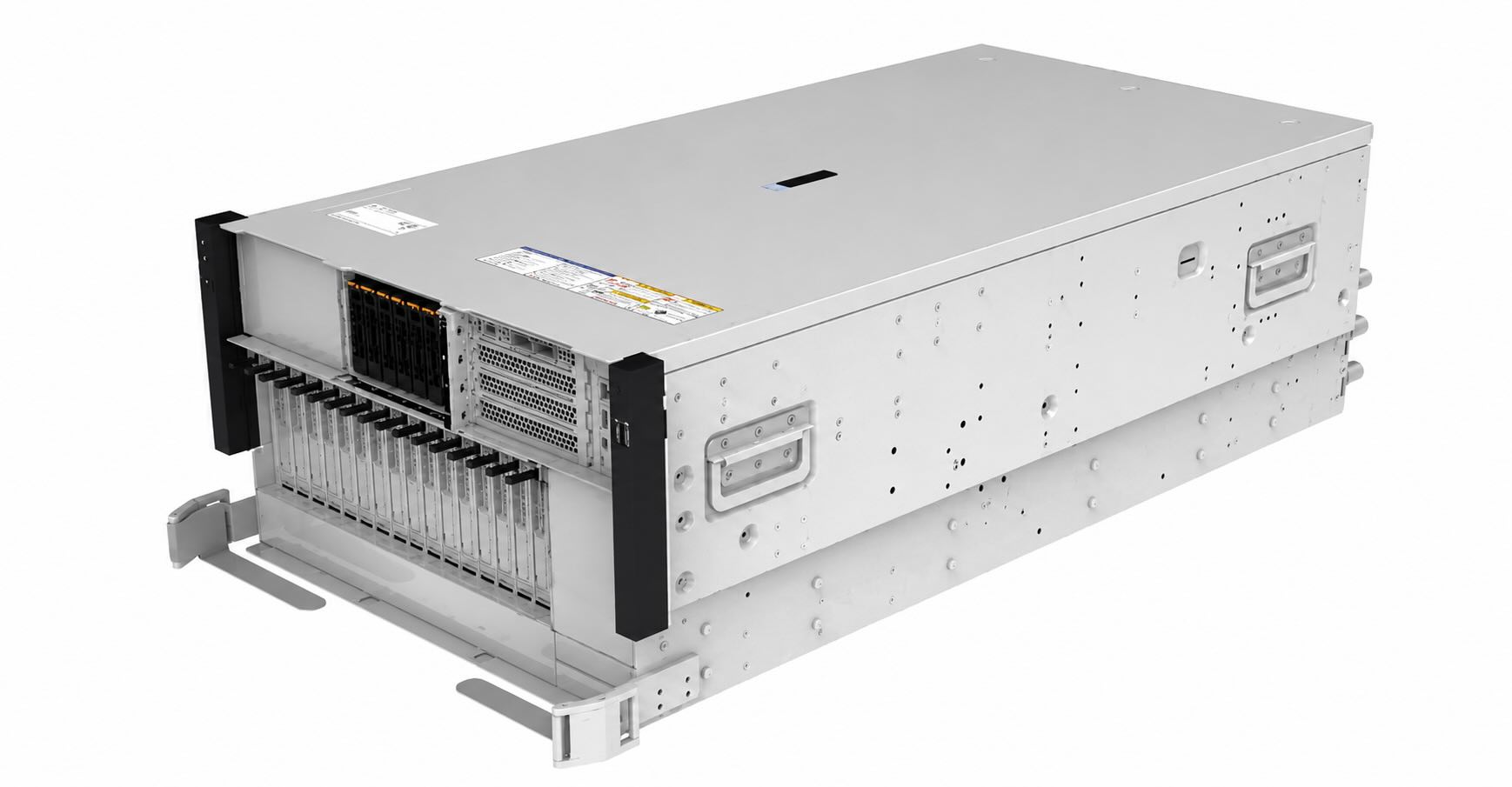

IFT0034L server product image
IFT0034L
IFT0034L6U

6U Intel NVLink GPU Server

A 6U Intel platform server for high-density GPU and NVLink interconnect scenarios. Designed for AI infrastructure projects with higher requirements for GPU-to-GPU communication, system cooling, and power redundancy.

Best For
High-density GPU inference / NVLink interconnect / LLM serving / Data center deployment
Supports 16 H20 GPUs
NVL16 Carrier Board
15 NVLink connections per GPU
Optional liquid-cooling specification
View Full Specs+

Core Configuration

Form Factor
6U dual-socket high-density GPU server.
Processor
Supports two 4th / 5th Gen Intel Xeon Scalable processors, up to 64 cores per CPU and up to 385W TDP.
Memory
Intel platform supports up to 32 DDR5 5600MT/s DIMMs.
Chassis Size
850mm(D) × 438mm(W) × 263.6mm(H).

GPU, Interconnect & Storage

GPU Configuration
Supports 16 H20 GPUs and BF3.
NVLink
NVL16 Carrier Board integrates 4 NVLink Switch chips with 240 NVLinks in total; each GPU connects to 15 NVLinks, with bandwidth up to 800GB/s.
Internal Storage
Supports one M.2 device.
Front Storage
Supports 4 Anybay drives and 2 NVMe drives.

Power, Cooling & Management

Power
Default one CRPS power supply; supports 6+ redundancy, 2700W / 3200W, and optional titanium-grade or higher PSU.
Air Cooling
Default 5 × 8038 fans, with 4+1 redundancy.
Liquid Cooling
Supports up to 36kW maximum power and 10PSI maximum pressure drop; supports independent outlet specifications for system, CPU, switch, and GPU cold plates.
Operating Systems
Supports Ubuntu, CentOS, VMware, KVM, Docker, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.

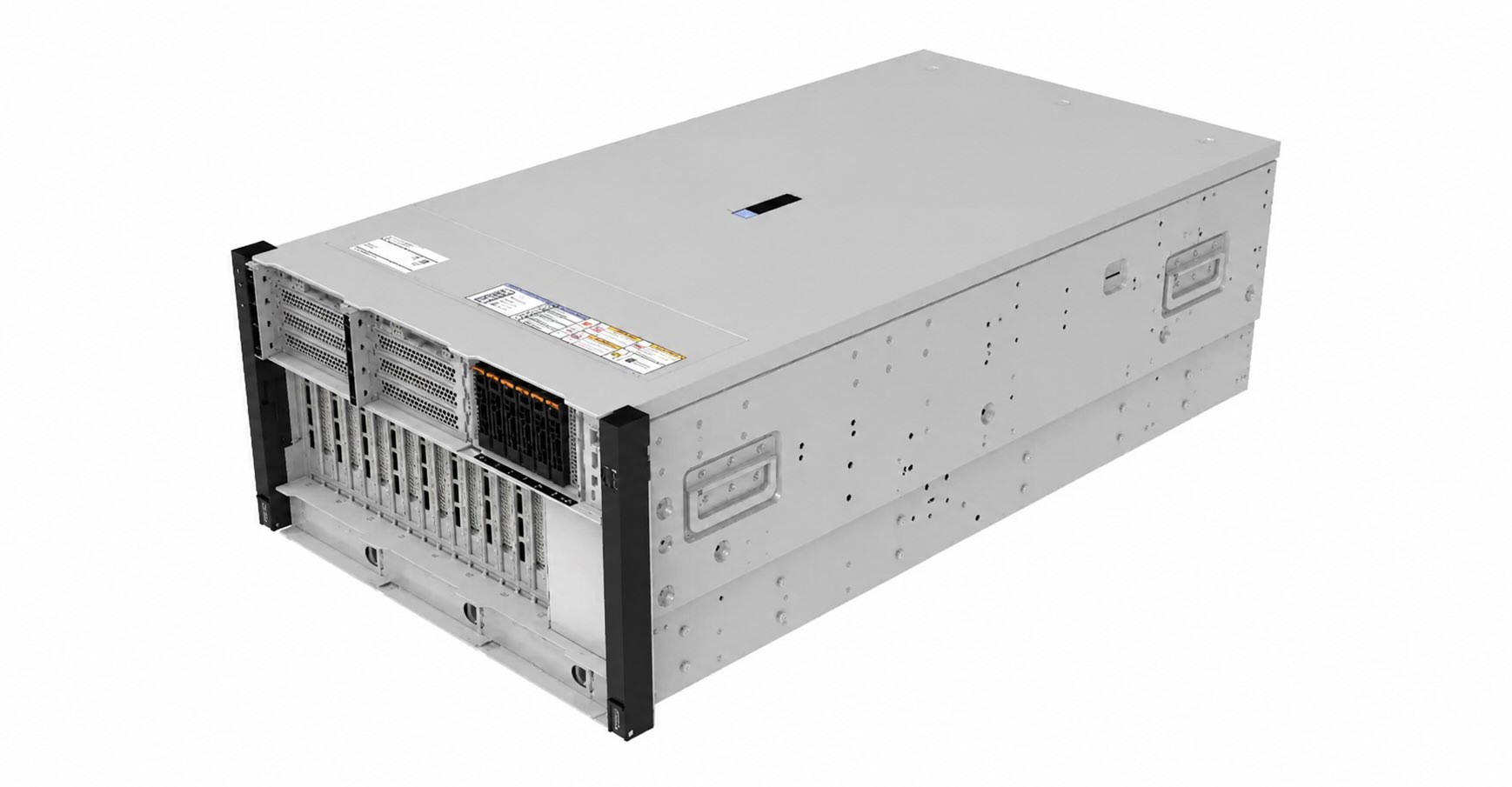

IFT5134A server product image
IFT5134A
IFT5134A6U

6U AMD AI Server

A 6U dual-socket AI server for AMD EPYC platforms, suited for inference cluster nodes that require high CPU core counts, high memory bandwidth, and strong stability.

Best For
AI inference / High-performance computing / Private deployment / Compute clusters
Dual-socket AMD EPYC platform
Up to 192 cores per CPU
24 DDR5 6400MT/s DIMMs
5 × 8080 fan modules
View Full Specs+

Core Configuration

Form Factor
6U dual-socket server.
Processor
Supports two AMD 4th / 5th Gen EPYC processors, up to 192 cores per CPU and up to 500W TDP.
Memory
Supports up to 24 DDR5 6400MT/s DIMMs, 1DPC.
Chassis Size
850mm(D) × 438mm(W) × 263.6mm(H).

Storage & I/O

Front Storage
Supports 4 Anybay drives and 2 NVMe storage devices.
Right Ear
Supports one VGA and two USB 3.0 / USB 2.0 ports.
BMC
Supports RJ45 management port, USB 3.0, Mini-DP, and Micro USB.

Power, Cooling & Management

Power
Supports 2000W / 2700W / 3200W CRPS power supplies with 4+ redundancy, optional titanium-grade PSU, 220V AC, and 240V HVDC.
Cooling
Default 2 groups of 5 × 8080 standard fans, with N+1 redundancy.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.

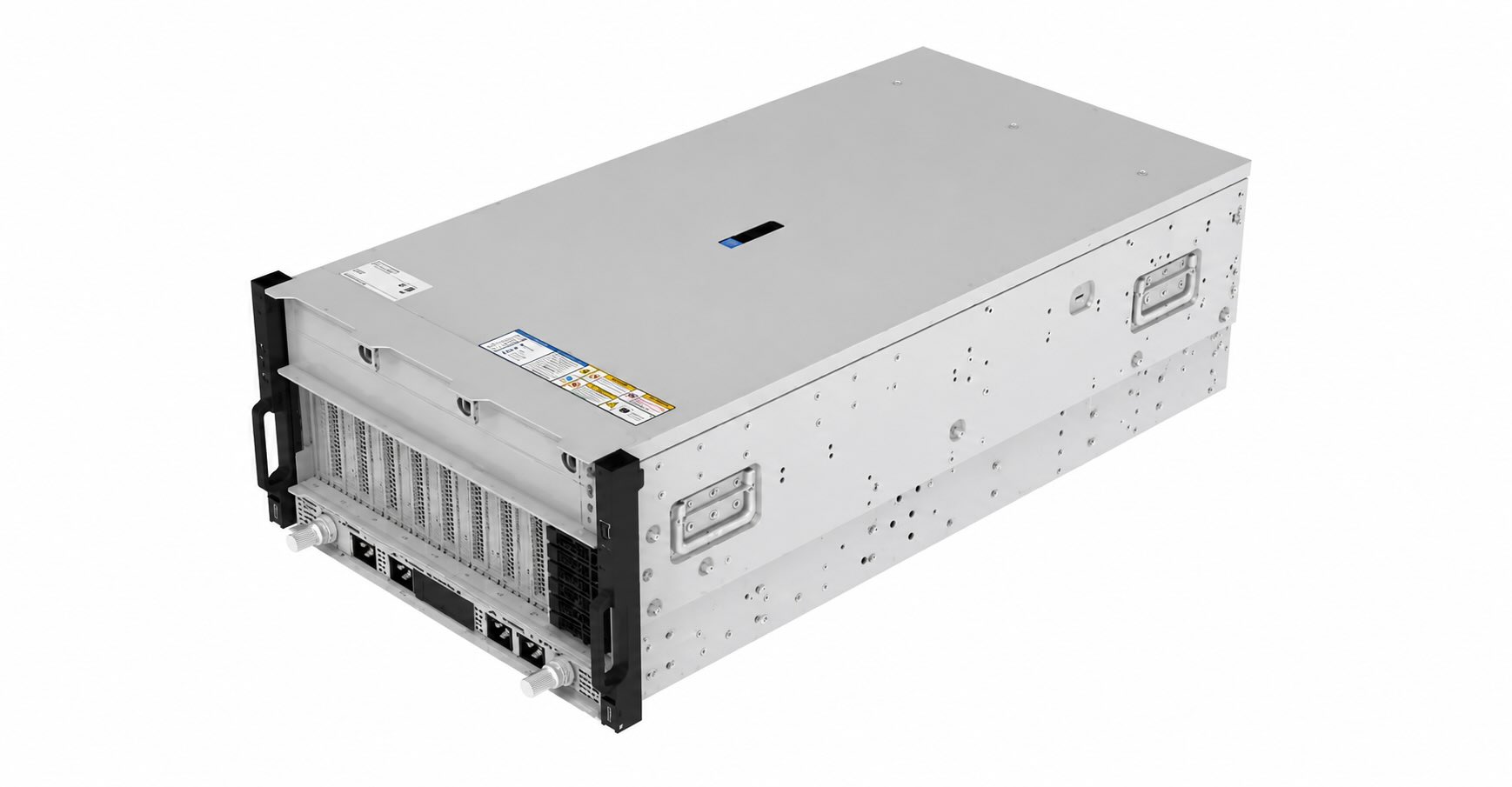

IFT0034AL server product image
IFT0034AL
IFT0034AL6U

6U Liquid-Cooled AI Server

A 6U heterogeneous-platform server for high-power AI systems and liquid-cooled data center deployments. It supports Intel or AMD dual-socket platforms and provides both air-cooling and liquid-cooling options for high-density, high-power, long-running environments.

Best For
Liquid-cooled AI servers / High-power GPU nodes / Data center deployment / Heterogeneous platform delivery
Intel or AMD platform support
Air and liquid cooling options
Up to 3200W CRPS power
Built for high-power GPU nodes
View Full Specs+

Core Configuration

Form Factor
6U dual-socket heterogeneous-platform server.
Processor
Supports Intel Xeon or AMD EPYC dual-socket platforms, configurable by GPU, memory capacity, and delivery scenario.
Memory
Intel platform supports up to 32 DDR5 5600MT/s DIMMs; AMD platform supports up to 24 DDR5 6400MT/s DIMMs.
Chassis Size
850mm(D) × 438mm(W) × 263.6mm(H).

Storage & I/O

Internal Storage
Supports one M.2 SATA / NVMe device.
Front Storage
Supports 4 Anybay drives and 2 NVMe drives.
Right Ear
Supports 2 USB 3.0 / USB 2.0 ports.
BMC
Supports RJ45 management port, USB 3.0, Mini-DP, and Micro USB.

Power, Cooling & Management

Power
Supports 2000W / 2700W / 3200W CRPS power supplies with 3+ redundancy, optional titanium-grade PSU, 220V AC, and 240V HVDC.
Air Cooling
Default 5 × 8038 standard fans, with N+1 redundancy.
Liquid Cooling
Supports liquid cooling for CPU and GPU components, with independent outlet specifications for system, CPU, and GPU cold plates.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.
5U GPU Servers

5U Servers

For high-power GPUs, complex cooling, and high-density compute deployment.

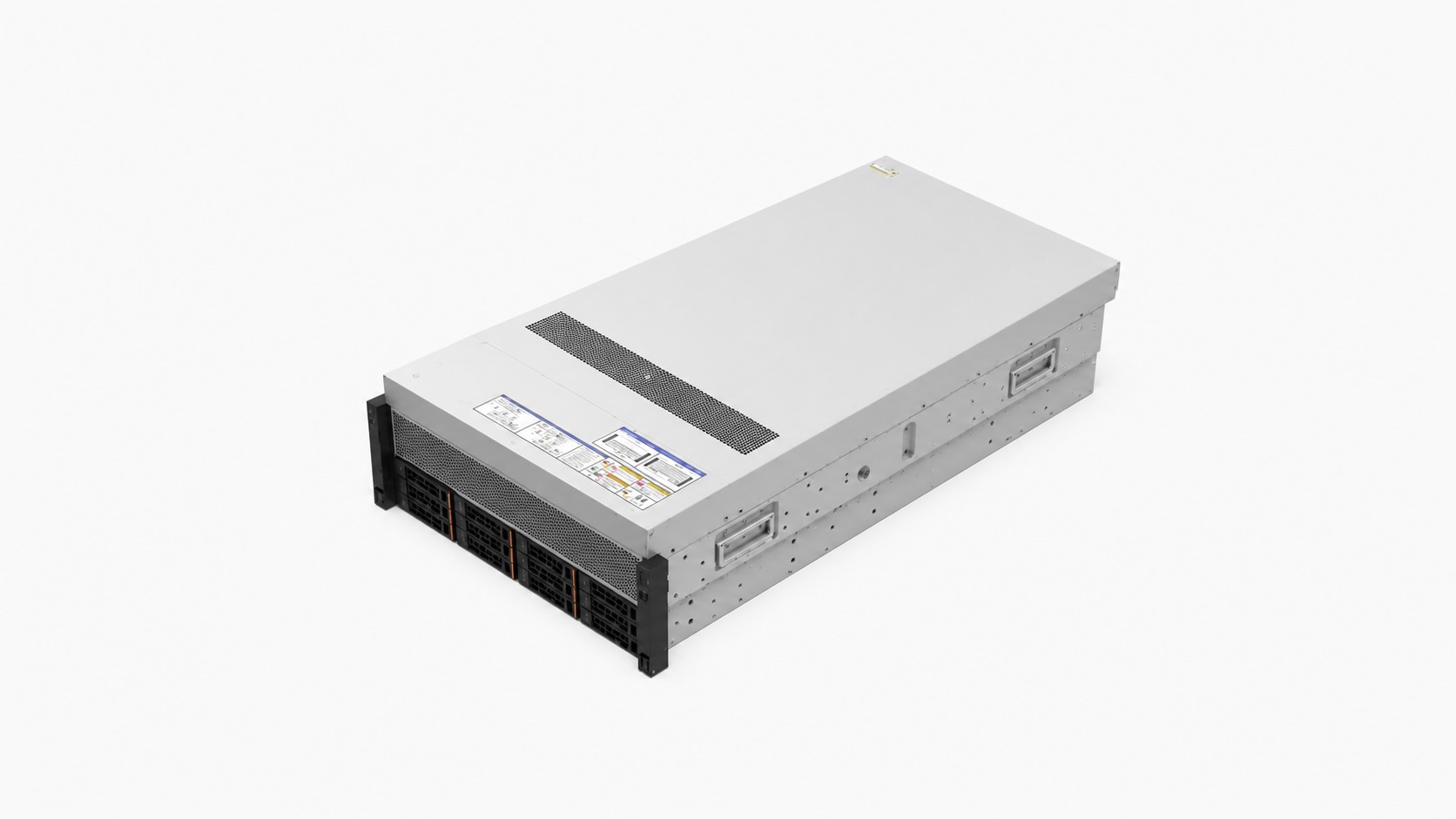

IFT0073H server product image
IFT0073H
IFT0073H5U

5U Intel GPU Server

A 5U GPU server for Intel Xeon platforms, offering more chassis space and multiple GPU configuration options for high-power GPUs, complex cooling, and high-density inference nodes.

Best For
High-density inference / Multi-GPU servers / Model serving / Mixed training and inference
5U dual-socket form factor
Dual-socket Intel Xeon platform
Supports 8 dual-width GPU configurations
2200W CRPS power support
View Full Specs+

Core Configuration

Form Factor
5U dual-socket GPU server.
Processor
Supports two 4th / 5th Gen Intel Xeon Scalable processors, up to 64 cores per CPU, HBM support, and up to 350W TDP.
Memory
Supports up to 32 DDR5 DIMMs, up to 5600MT/s.
Motherboard Size
380mm × 427mm.
Dimensions
220mm × 435.5mm × 850mm.

GPU & Storage

Front Storage
Supports 12 × 3.5-inch SAS / SATA / NVMe drives.
GPU Configuration
Supports 8 dual-width GPUs and 5 single-width NICs through switch expansion; supports 8 dual-width GPUs and 4 single-width NICs through direct connection.

I/O, Power & Cooling

Front I/O
Left ear supports power, UID, and system status indicators; right ear supports VGA, USB 3.0 Type-A, and USB 2.0 Type-A.
Rear I/O
Supports RJ45-MNG, MicroUSB-UART, USB Type-A, and Mini-DP.
Power
CRPS specification; supports AC / HVDC, 1300W / 1600W / 2000W / 2200W, N+1 redundancy, and hot-swap.
Cooling
Lower 4 × 056 fan modules and upper 4 × 056 fan modules, with N+1 redundancy.
Operating Environment
Temperature: 5°C–40°C.

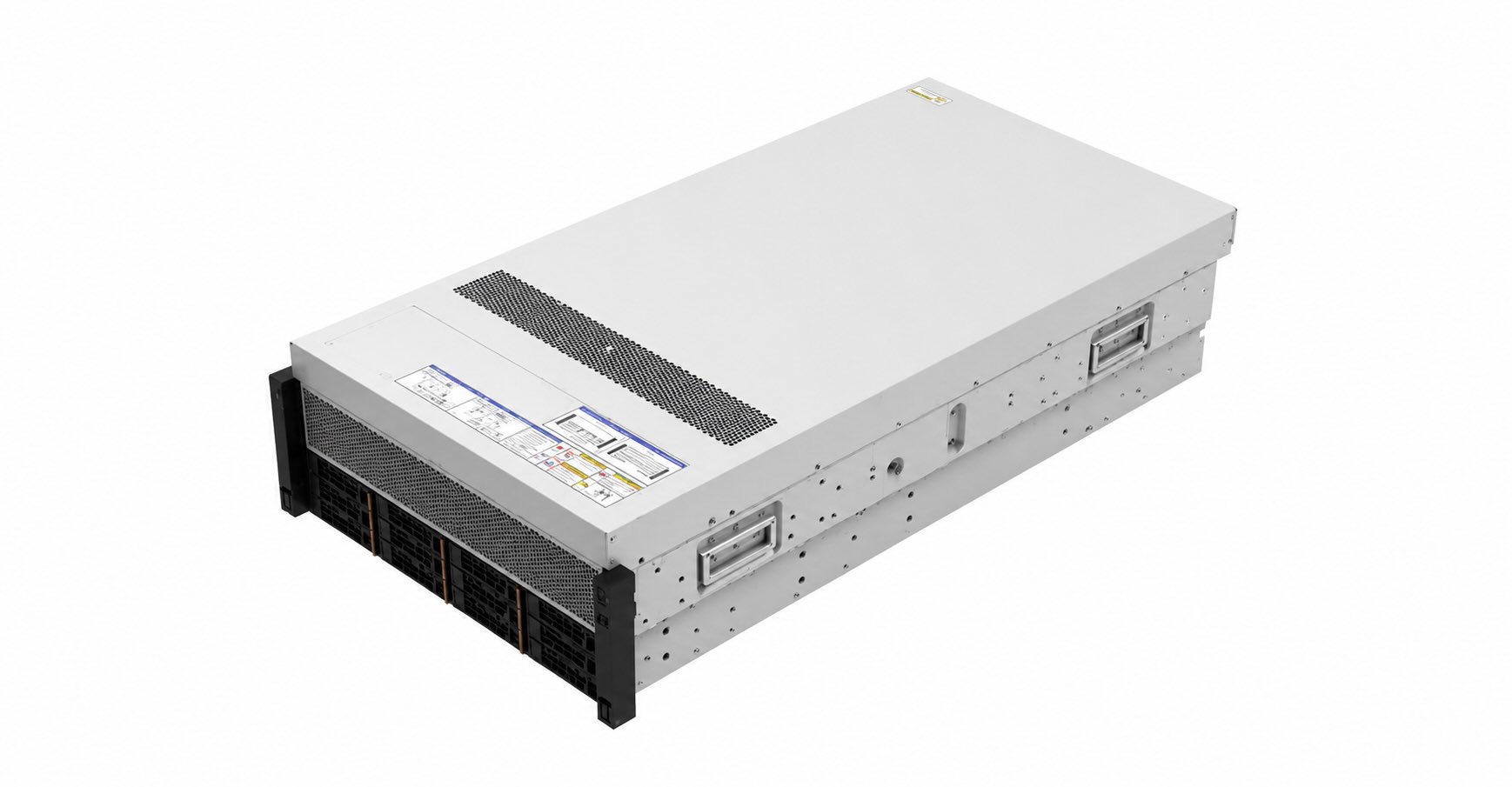

IFT5173H server product image
IFT5173H
IFT5173H5U

5U AMD GPU Server

A 5U high-performance GPU server for dual-socket AMD EPYC platforms. Built for high-density inference, GPU batch delivery, and enterprise AI infrastructure.

Best For
Large-scale inference / GPU clusters / Enterprise AI infrastructure / Batch server delivery
Dual-socket AMD EPYC platform
24 DDR5 6400MT/s DIMMs
5U expanded cooling space
3200W CRPS power support
View Full Specs+

Core Configuration

Form Factor
5U dual-socket GPU server.
Processor
Supports two AMD 4th / 5th Gen EPYC processors, up to 192 cores per CPU and up to 500W TDP.
Memory
Supports up to 24 DDR5 6400MT/s DIMMs, 1DPC.
Chassis Size
219.5mm × 447mm × 892.6mm.

Storage & I/O

Front Storage
Supports up to 12 × 3.5-inch Anybay drives.
Front I/O
Supports DP and USB 3.0.
BMC
Supports RJ45-MNG, MicroUSB-UART, USB Type-A, and Mini-DP.

Power, Cooling & Management

Power
Supports 2700W / 3200W CRPS power supplies with 2+ redundancy, 220V AC, and 240V HVDC.
Cooling
Lower 4 × 056 fan modules and upper 4 × 056 fan modules, with N+1 redundancy and hot-swap support.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.
4U GPU Servers

4U Servers

For multi-GPU inference, enterprise GPU pools, and mid-to-large inference nodes.

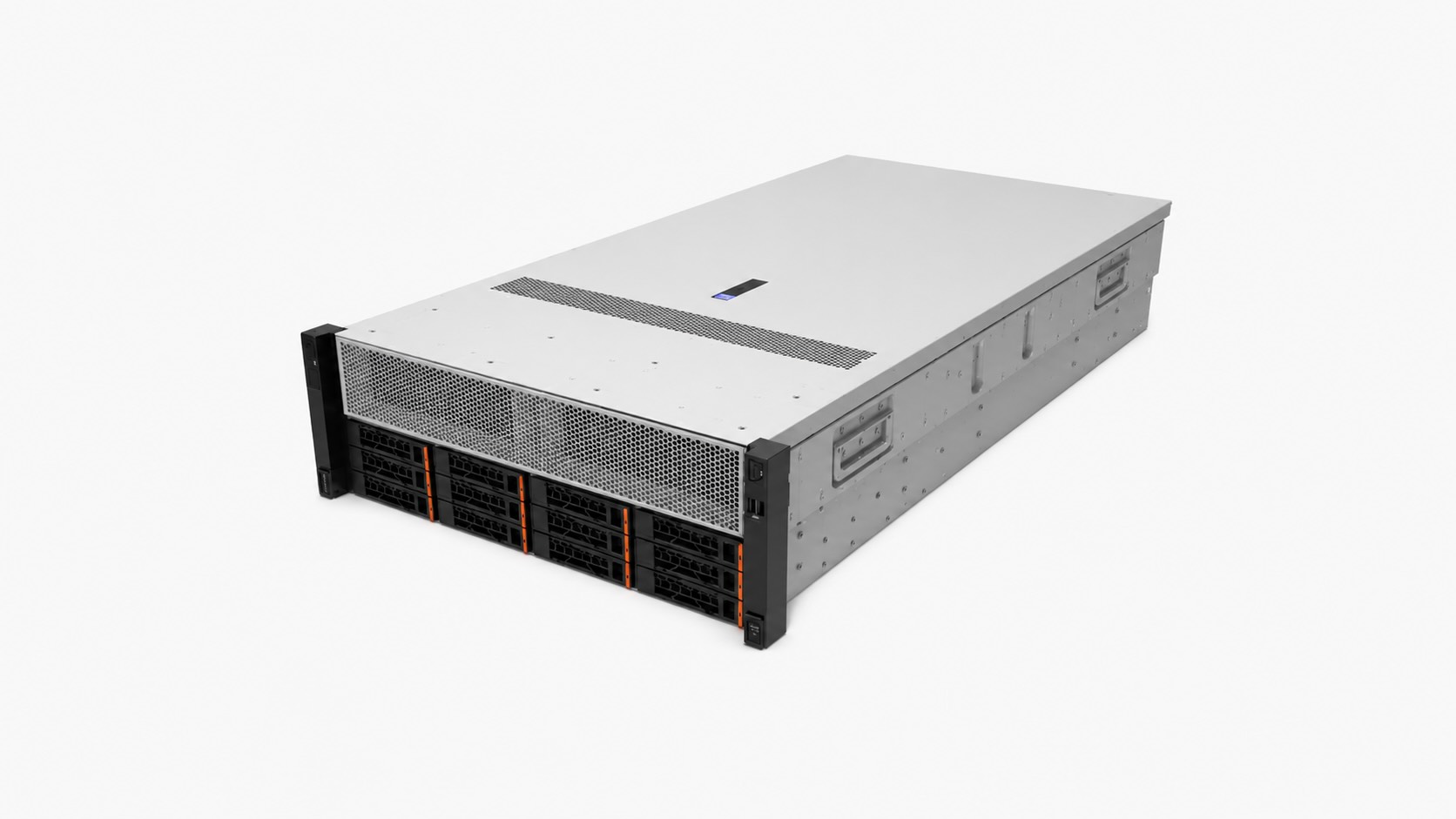

IFT5171G server product image
IFT5171G
IFT5171G4U

4U GPU Compute Server

A 4U GPU server for AI inference and multi-GPU compute. It supports high-power GPUs, PCIe 5.0 expansion, and redundant power for stable enterprise-scale inference deployments.

Best For
Multi-GPU inference / AI agent clusters / Model serving / GPU compute
4U GPU server form factor
Supports 4 dual-width GPUs
PCIe 5.0 expansion
Dual CRPS redundant power
View Full Specs+

Core Configuration

Form Factor
4U GPU server.
Processor
Single-node C2 module with dual-CPU architecture; up to 72 cores per CPU, 144 cores per system, and up to 500W TDP.
Memory
C2 module supports LPDDR5x, up to 960GB memory and approx. 1TB/s maximum bandwidth.
Dimensions
Approx. 88mm × 438mm × 900mm.

GPU, Storage & Expansion

GPU
Supports 4 dual-width FHFL GPUs, up to 400W TDP per GPU.
Front Storage
Supports 6 U.2 NVMe SSD slots.
Internal Storage
Two onboard M.2 interfaces.
PCIe
Supports up to 7 PCIe 5.0 x16 slots, including 4 DW slots and 3 SW slots.

I/O, Power & Cooling

BMC
Supports RJ45 BMC, USB 3.0, and mini-DP.
Power
Supports two CRPS power supplies, up to 3200W per PSU, with 1+1 redundancy.
Cooling
Supports 6 × 6056 fans with 5+1 redundancy.

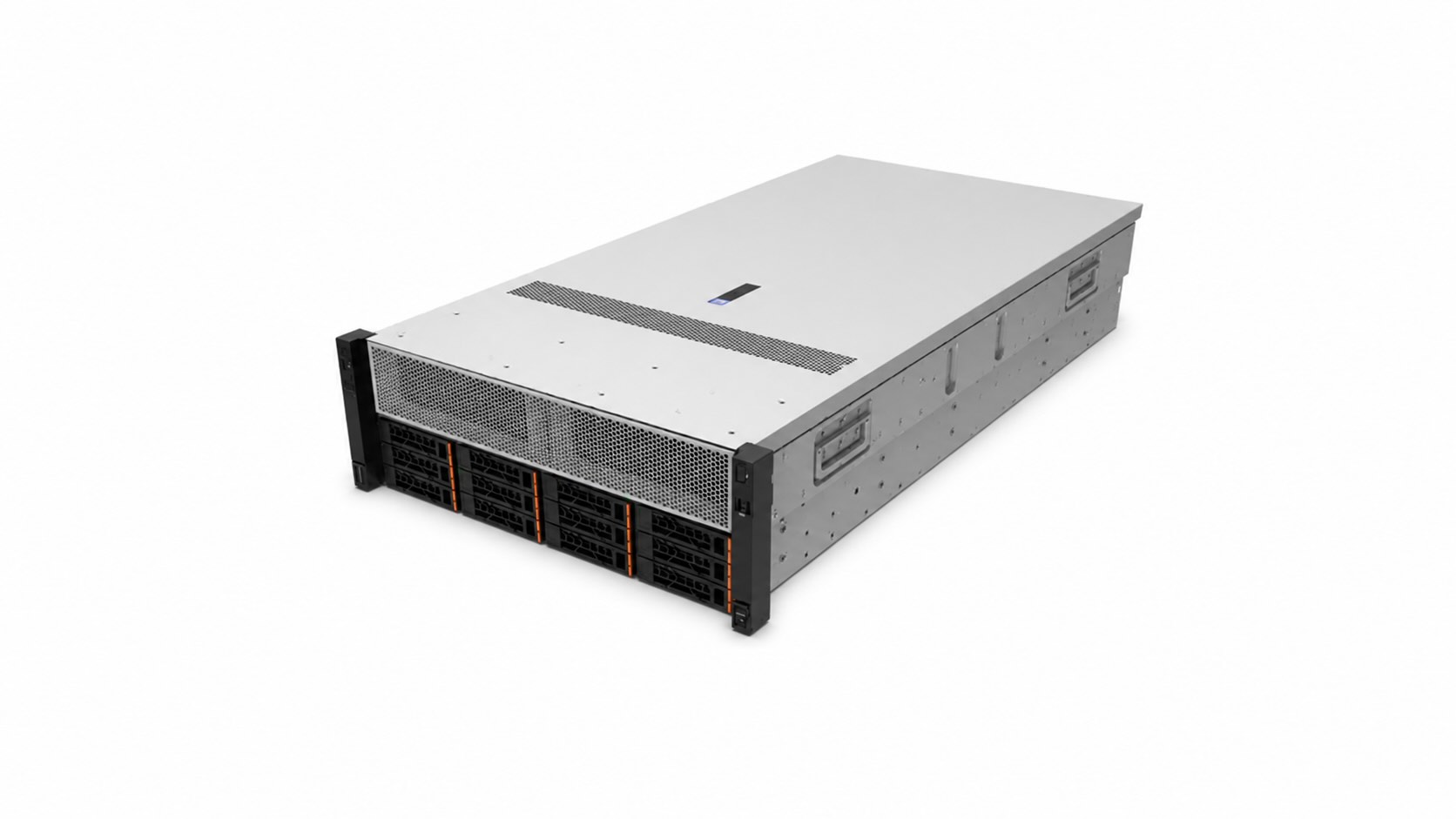

IFT0073G server product image
IFT0073G
IFT0073G4U

4U AMD GPU Server

A 4U GPU server based on AMD EPYC, supporting multiple dual-width GPUs and high-density fan modules. Suitable for mid-to-large inference nodes, model serving, and enterprise GPU pools.

Best For
GPU inference / Model serving / Private GPU pools / Batch delivery
AMD EPYC Genoa / Turin platform
Supports up to 6 dual-width GPUs
12 DDR5 6400MT/s DIMMs
N+1 redundant cooling
View Full Specs+

Core Configuration

Form Factor
4U GPU server.
Processor
Supports one AMD EPYC 4th Gen Genoa / 5th Gen Turin processor, up to 192 cores and up to 500W TDP.
Memory
Supports up to 12 DDR5 6400MT/s DIMMs.
Dimensions
175.2mm × 447mm × 877mm.

GPU, Storage & Expansion

GPU
Supports up to 6 dual-width GPUs.
Front Storage
Supports up to 12 × 2.5-inch SAS / SATA / NVMe drives.
BMC
Pluggable design with onboard BIOS / BMC ROM and dual-Flash support.

I/O, Power & Cooling

Front I/O
Left ear supports VGA; right ear supports power button LED, UID button LED, system status LED, and USB 3.0.
Rear I/O
Supports power button LED, UID button LED, system status LED, Type-A USB 3.0, RJ45 management port, Mini-DP, and Mini USB.
Power
CRPS specification; supports AC / HVDC, 1300W / 1600W / 2000W / 2200W / 2700W, and N+1 redundancy.
Cooling
Lower 4 × 056 fan modules and upper 4 × 056 fan modules, with N+1 redundancy and hot-swap support.
Operating Environment
Temperature: 5°C–40°C.

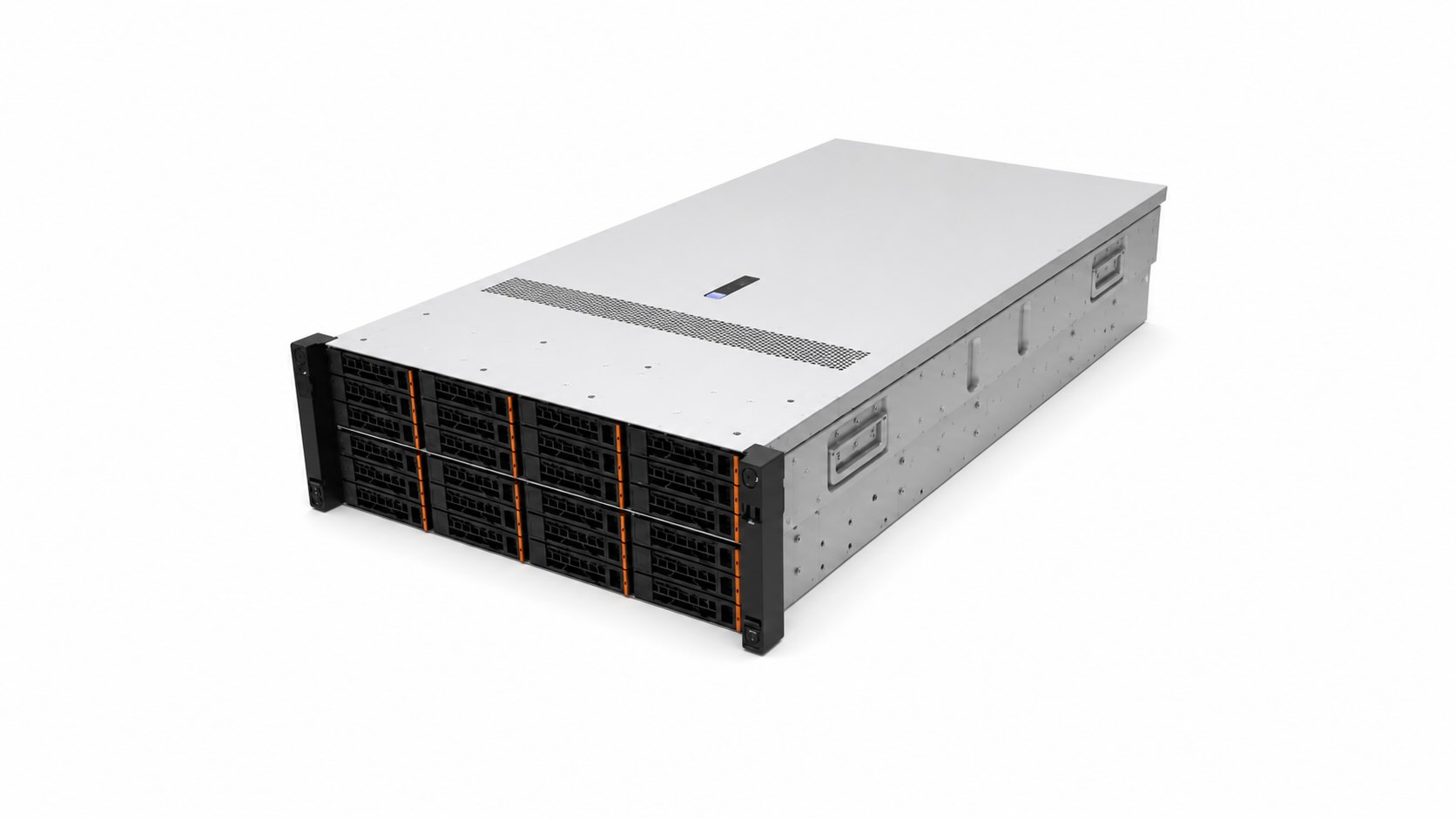

IFT0073S server product image
IFT0073S
IFT0073S4U

4U Intel GPU Server

A 4U dual-socket Intel Xeon GPU expansion server with up to 24 front drive bays, rear storage expansion, and multiple PCIe GPU options. Designed for inference and compute workloads that need balanced CPU and GPU resources.

Best For
GPU inference / High-concurrency workloads / Multi-GPU compute / Data processing
Dual-socket Intel Xeon platform
32 DDR5 5600MT/s DIMMs
Up to 24 front 2.5-inch drive bays
RAID 0 / 1 / 10 / 5 / 50 / 60 support
View Full Specs+

Core Configuration

Form Factor
4U dual-socket GPU server.
Processor
Supports two 4th / 5th Gen Intel Xeon Scalable processors, up to 64 cores per CPU, HBM support, and up to 350W TDP.
Memory
Supports up to 32 DDR5 DIMMs, up to 5600MT/s.
Motherboard Size
380mm × 427mm.
Dimensions
175.2mm × 447mm × 877mm.

Storage & Expansion

Front Storage
Supports up to 24 × 2.5-inch SAS / SATA / NVMe drives.
Rear Storage
Rear side supports up to 12 × 2.5-inch SAS / SATA / NVMe drives, plus an additional 4 × 2.5-inch SAS / SATA / NVMe drives.
PCIe
Supports up to 6 rear PCIe SW slots and 1 OCP slot.
RAID
Supports RAID 0, 1, 10, 5, 50, 60, and related storage configurations.

I/O, Power & Management

I/O
Left ear supports power, UID, and system status indicators; right ear supports VGA, USB 3.0 Type-A, and USB 2.0 Type-A.
BMC
Supports RJ45-MNG, MicroUSB-UART, USB 2.0 Type-A, USB 3.0 Type-A, and Mini-DP.
Power
Supports AC / HVDC, 1300W / 1600W / 2000W / 2200W, and 3+1 redundancy.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.

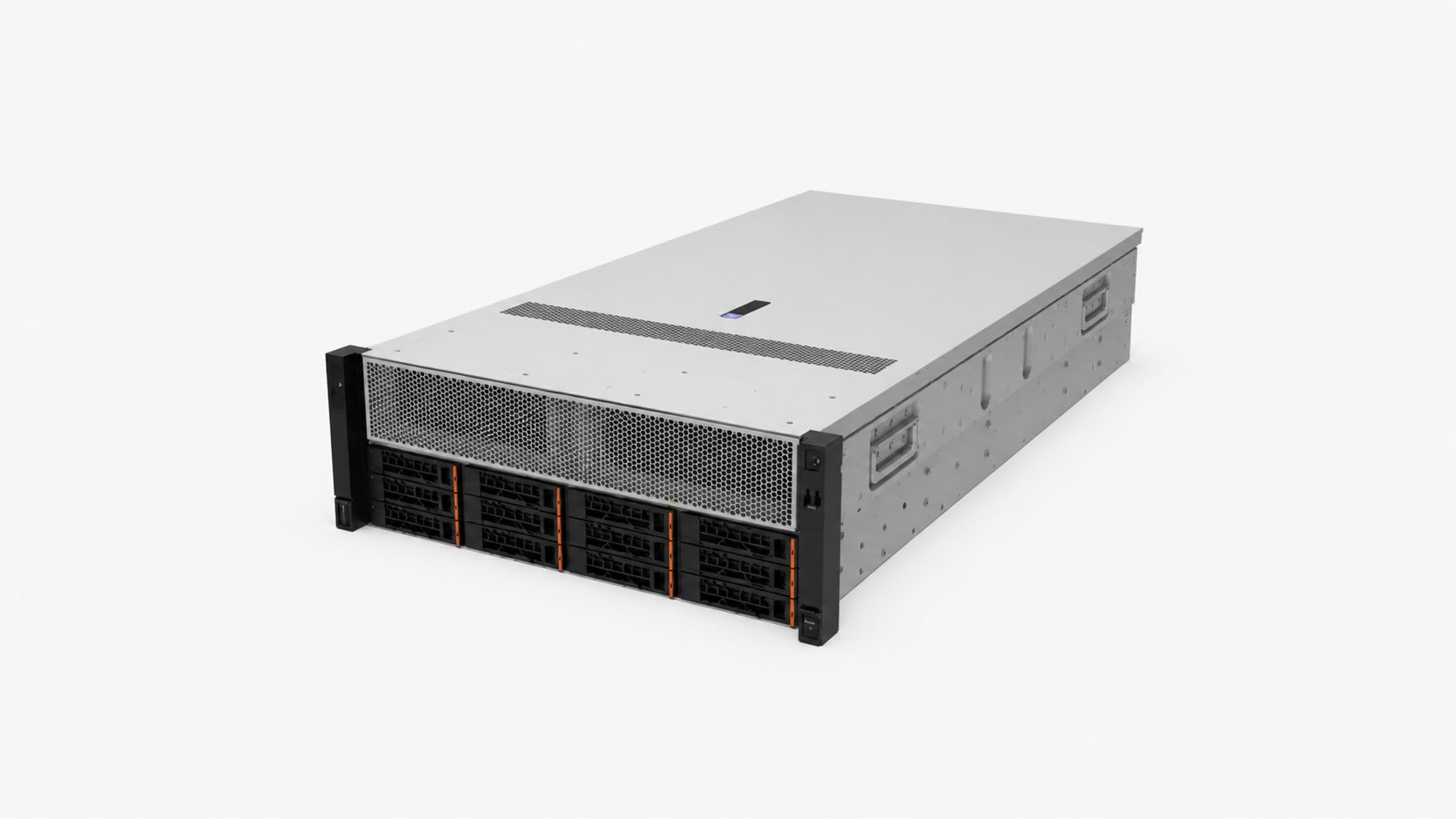

IFT5173G server product image
IFT5173G
IFT5173G4U

4U Dual-Socket AMD GPU Server

A 4U GPU server for dual-socket AMD EPYC platforms. It is suited for large-scale inference, private AI clusters, and high-density GPU resource deployment, with high-core-count CPUs, DDR5 memory, and redundant power and cooling.

Best For
LLM inference / Private AI clusters / GPU resource pools / Batch delivery
Dual-socket AMD EPYC platform
Up to 192 cores per CPU
24 DDR5 6400MT/s DIMMs
3200W CRPS power support
View Full Specs+

Core Configuration

Form Factor
4U dual-socket GPU server.
Processor
Supports two AMD 4th / 5th Gen EPYC processors, up to 192 cores per CPU and up to 500W TDP.
Memory
Supports up to 24 DDR5 6400MT/s DIMMs, 1DPC.
Chassis Size
175.2mm × 447mm × 892.6mm.

Storage & Expansion

Front Storage
Supports up to 12 × 3.5-inch Anybay drives.
Front I/O
Supports DP and USB 3.0.
BMC
Supports RJ45-MNG, MicroUSB-UART, USB Type-A, and Mini-DP.

Power, Cooling & Management

Power
Supports 2000W / 2700W / 3200W CRPS power supplies with 2+ redundancy, 220V AC, and 240V HVDC.
Cooling
Lower 4 × 056 fan modules and upper 4 × 056 fan modules, with N+1 redundancy and hot-swap support.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.
Operating Environment
Operating temperature: 5°C–35°C; RH 8%–85%.
2U Servers

2U Servers

For general compute, storage expansion, virtualization, high-concurrency workloads, and lightweight AI inference.

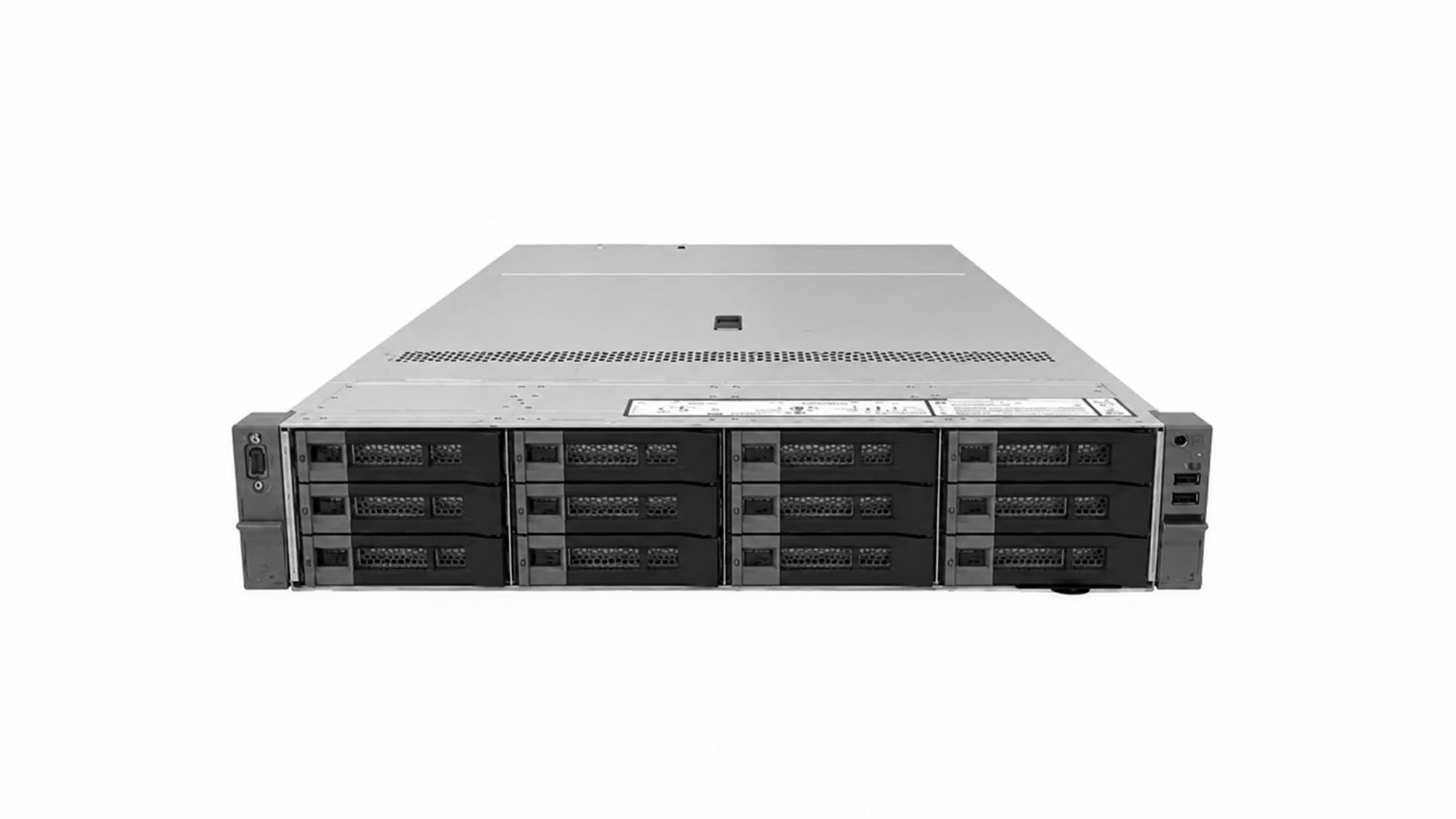

IFT0011 server product image
IFT0011
IFT00112U

2U Single-Socket Server

A 2U single-socket server for enterprise compute, storage expansion, and lightweight inference. Designed for stable operation, standard rack deployment, and flexible drive configurations.

Best For
General compute / Storage nodes / Lightweight inference / Private enterprise deployment
Standard 2U rack design
DDR5 6400MT/s memory support
Multiple HDD / SSD cage options
IPMI / Redfish management
View Full Specs+

Core Configuration

Form Factor
2U single-socket rack server.
Processor
Supports one 6th Gen Intel Xeon Scalable processor, up to 288 cores per CPU and up to 550W TDP.
Memory
Supports up to 12 DDR5 6400MT/s DIMMs.
Chassis Size
839.5mm(D) × 447mm(W) × 87mm(H).

Storage & Expansion

Front Storage
Supports multiple HDD cage options, including 12LFF, 24SFF, and 25SFF.
Rear Storage
Supports GPU / PCIe slot expansion, with optional 3.5-inch HDD cages and 2.5-inch SSD cages.
PCIe Resources
Supports multiple MCIO and PCIe expansion slots.

I/O, Power & Management

System I/O
Right ear supports power button, UID button, system status LED, and USB 3.0; left ear supports VGA.
BMC Interface
Supports mini-DP, GbE, USB 3.0, and Mini USB.
Power
Supports 1300W / 1600W / 2000W / 3200W CRPS power supplies.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.
Operating Systems
Supports Ubuntu, CentOS, VMware, KVM, Docker, and related environments.

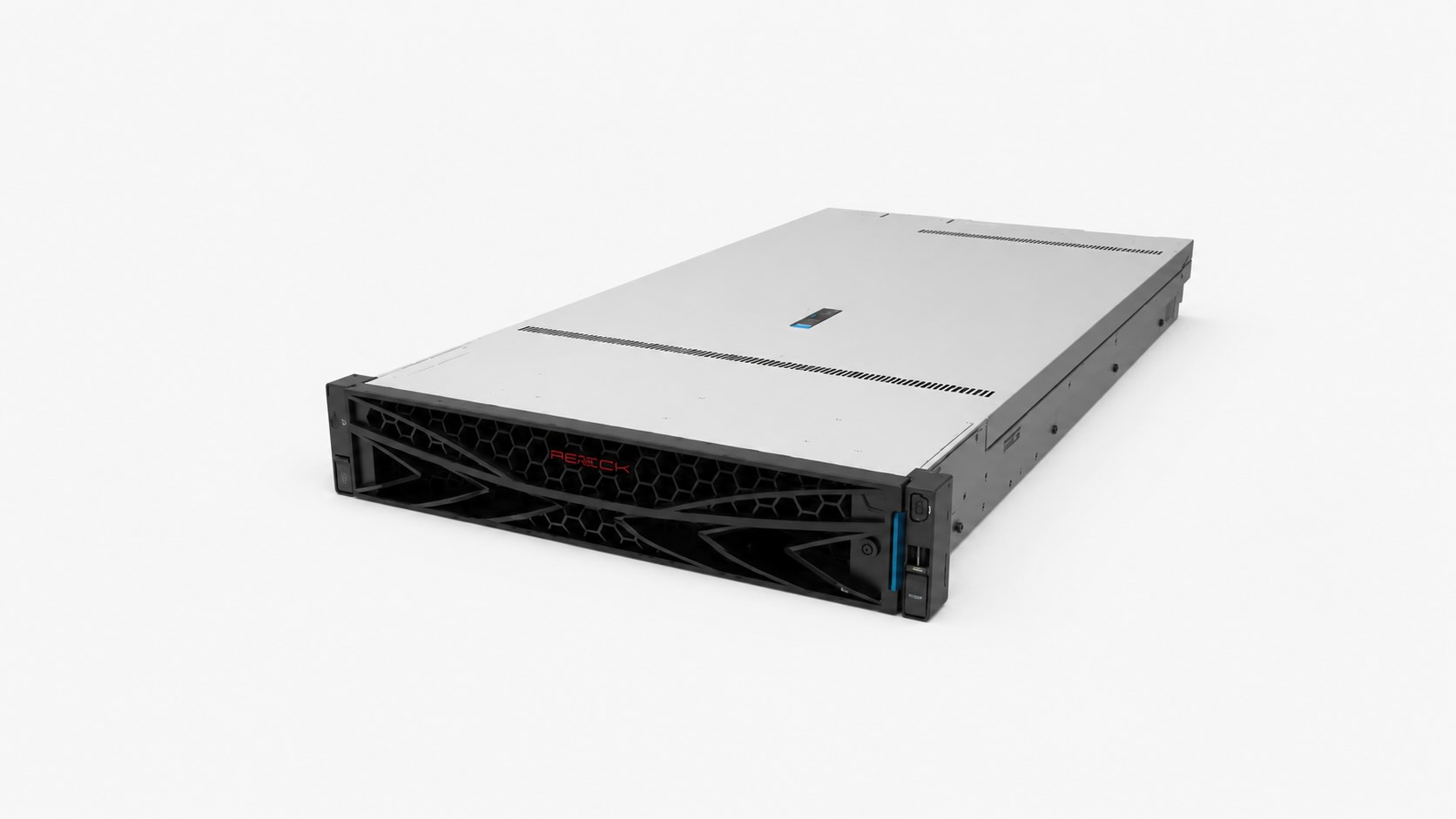

IFT5161 server product image
IFT5161
IFT51612U

2U AMD Compute Server

A 2U single-socket server based on the AMD EPYC platform for enterprise compute, storage expansion, virtualization, and basic inference workloads. It delivers strong CPU, memory, and PCIe expansion capacity within a standard 2U chassis.

Best For
Enterprise compute / Virtualization / Storage expansion / CPU inference
AMD EPYC Genoa / Turin platform
Up to 192 CPU cores
12 DDR5 RDIMMs
RAID and OCP expansion support
View Full Specs+

Core Configuration

Form Factor
2U single-socket rack server.
Processor
Supports one AMD EPYC 4th Gen Genoa / 5th Gen Turin processor, up to 192 cores and up to 500W TDP.
Memory
Supports 12 DDR5 RDIMMs, up to 6400MT/s.
Chassis Size
Approx. 87mm × 447mm × 850mm.

Storage & Expansion

Front Storage
Supports 12 × 3.5-inch SATA / NVMe hot-swap drives, or 2 × 2.5-inch NVMe hot-swap drives.
Internal Storage
Supports M.2 2280.
OCP Expansion
Supports two OCP 3.0 SFF slots for NIC expansion.
RAID
Supports RAID 0 / 1 / 10 / 5 / 50 / 60 through PCIe RAID cards.

I/O, Power & Management

Front I/O
Supports Type-A USB 3.0, USB 2.0, and VGA.
Rear I/O
Supports Type-A USB 3.0, Type-A USB 2.0, Mini-DP, RJ45 management port, and Micro USB UART.
Power
Supports two CRPS power supplies with 1+1 redundancy; optional 800W / 1300W / 1600W / 2000W / 2700W.
Cooling
Supports 4 × 8056 fans with N+1 redundancy.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.

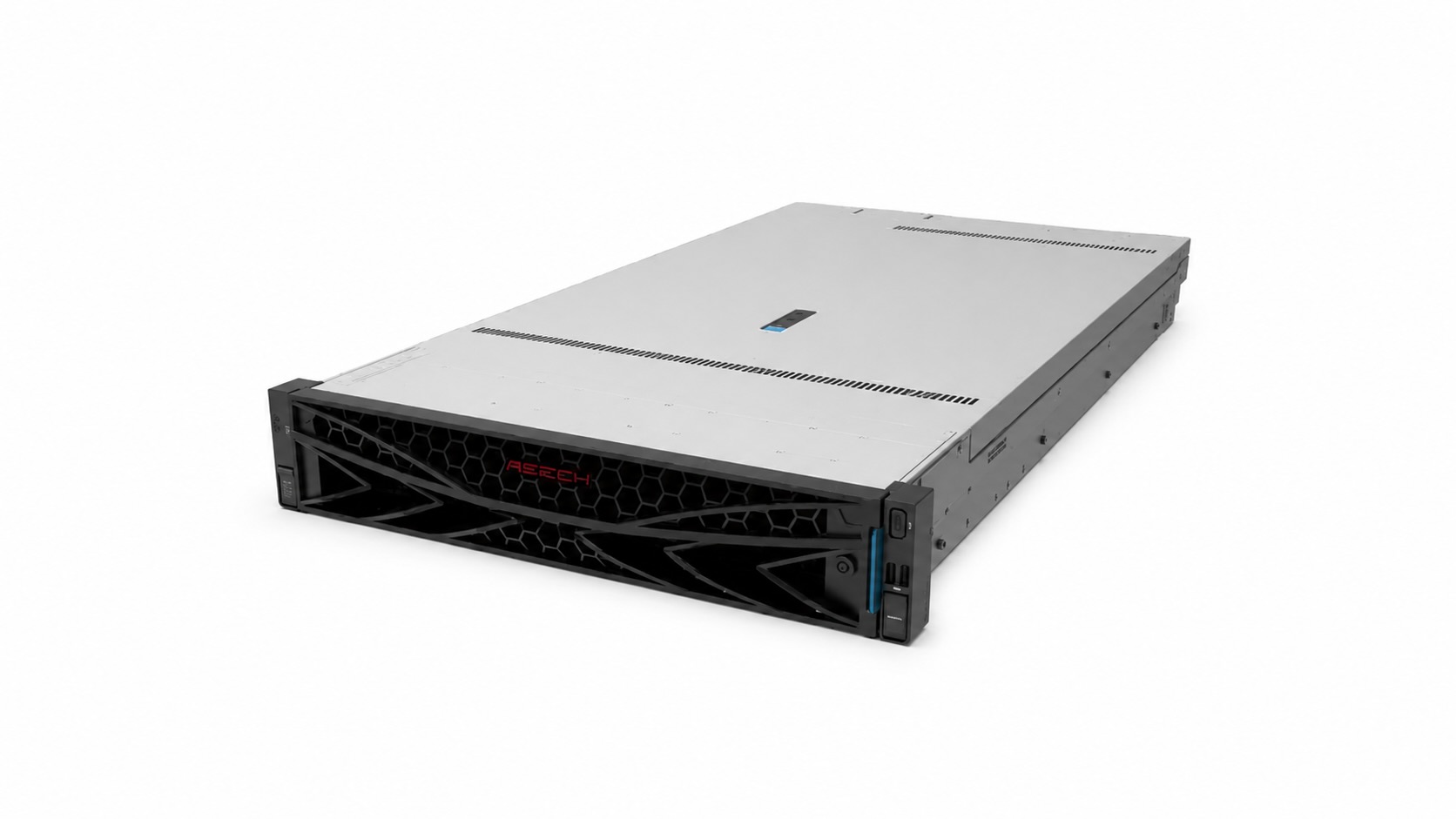

IFT0063 server product image
IFT0063
IFT00632U

2U Dual-Socket Intel Server

A 2U dual-socket server for Intel Xeon Scalable platforms. It provides more memory slots, a flexible rear I/O zone, and multiple PCIe 5.0 expansion options for enterprise compute and high-expansion workloads.

Best For
Enterprise compute / High-speed I/O / Virtualization / High-performance storage nodes
Dual-socket Intel Xeon platform
32 DDR5 RDIMMs
PCIe 5.0 expansion
Intel VROC RAID support
View Full Specs+

Core Configuration

Form Factor
2U dual-socket rack server.
Processor
Supports two 4th / 5th Gen Intel Xeon Scalable processors, up to 350W TDP per CPU.
Memory
Supports 32 DDR5 RDIMMs, up to 5600MT/s, 1DPC.

Storage & Expansion

Front Storage
Optional 12 × 3.5-inch SAS / SATA / NVMe hot-swap drives, or 24 × 2.5-inch SAS / SATA / NVMe hot-swap drives.
Rear I/O Zone
Supports configurations including PCIe 5.0 x16, 3.5-inch hot-swap storage, 2.5-inch hot-swap storage, PCIe 5.0 x8 LP, and PCIe 5.0 x16 FHFL.
OCP
Rear OCP zone supports two OCP 3.0 SFF expansion cards with multi-host support.
RAID
Supports Intel VROC and PCIe RAID cards, including RAID 0 / 1 / 10 / 5 / 50 / 60.

I/O, Power & Management

USB Ports
Right ear supports USB 3.0 and USB 2.0; rear BMC supports USB 3.0, USB 2.0, and Micro USB.
Network & Display
Supports a dedicated 100Mbps management port, front VGA, and rear BMC Mini-DP.
Power
Supports 800W / 1300W / 1600W / 2000W / 2700W CRPS power supplies, with 220V AC and 240V HVDC input.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.

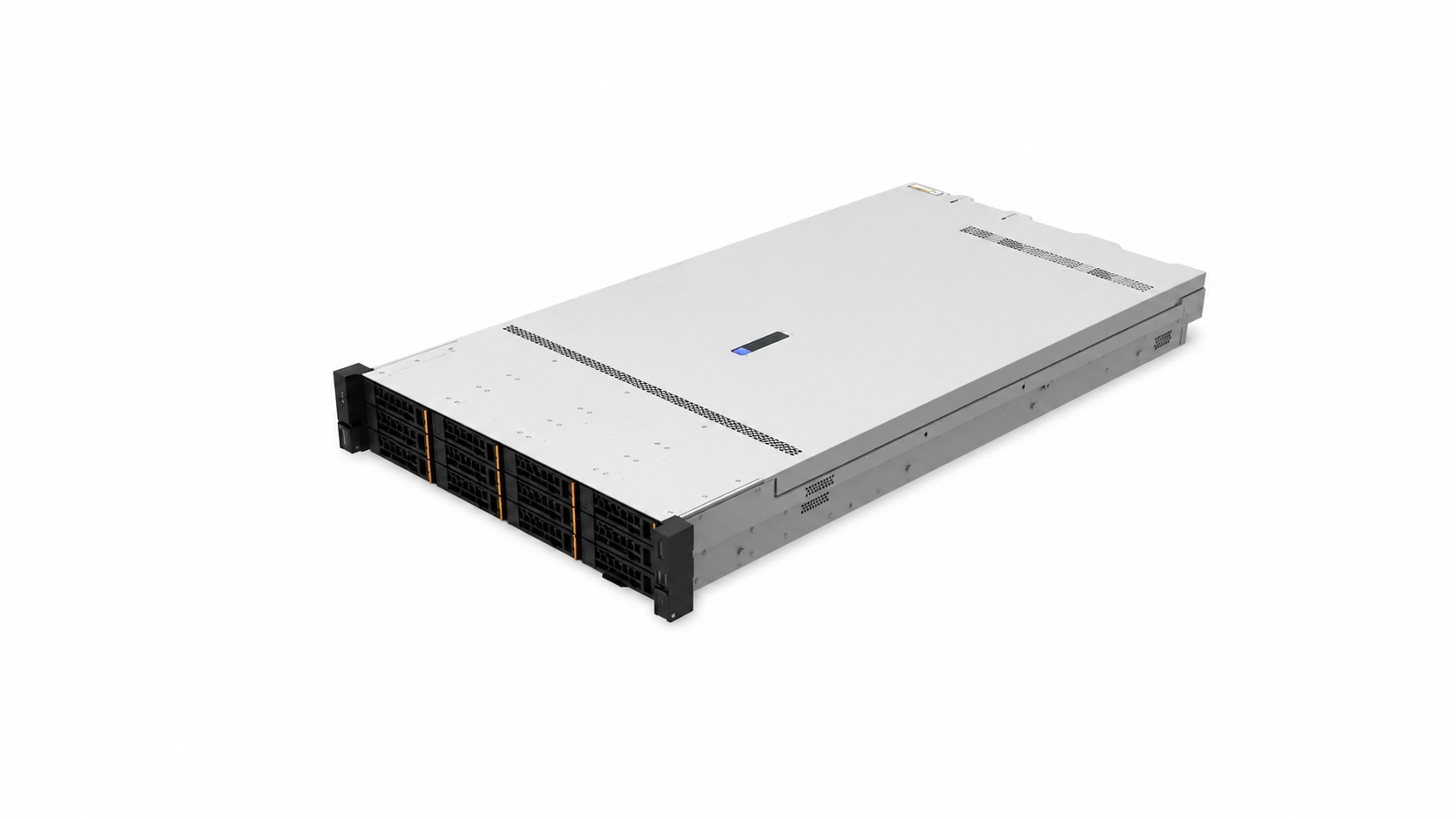

IFT5163 server product image
IFT5163
IFT51632U

2U Dual-Socket AMD Server

A 2U high-performance server for dual-socket AMD EPYC platforms. It is built for high-concurrency inference, enterprise compute, and storage-intensive workloads, with dual CPUs, 24 DDR5 DIMMs, and flexible front / rear storage.

Best For
High-concurrency inference / Enterprise compute / Data processing / Storage expansion
AMD EPYC 9004 / 9005 platform
Dual-socket CPU architecture
24 DDR5 6400MT/s DIMMs
3200W CRPS power support
View Full Specs+

Core Configuration

Form Factor
2U dual-socket rack server.
Processor
Supports two AMD EPYC 9004 / 9005 Series processors, up to 192 cores per CPU and up to 400W TDP.
Memory
Supports up to 24 DDR5 6400MT/s DIMMs, 1DPC.
Chassis Size
19-inch rackmount chassis, approx. 87.3mm × 438mm × 799mm.

Storage & Expansion

Internal Storage
Supports one M.2 SATA / NVMe device.
Front Storage
Supports up to 12 × 3.5-inch Anybay drives, or 24 × 2.5-inch NVMe SSDs.
Rear Storage
Supports up to 4 × 2.5-inch Anybay drives.

I/O, Power & Management

Front I/O
Right ear supports DP and USB 3.0 / USB 2.0; left ear supports power, UID, system status, and OCP indicators.
BMC
Supports power, UART, USB 3.0, RJ45-MNG, Mini-DP, UID, and system status interfaces.
Power
Supports 2000W / 2700W / 3200W CRPS power supplies with 1+1 redundancy, 220V AC, and 240V HVDC.
Cooling
Supports 4 × 6056 fan modules with N+1 redundancy.
Operating Systems
Supports Ubuntu, CentOS, Red Hat, Rocky, Windows Server, and related environments.

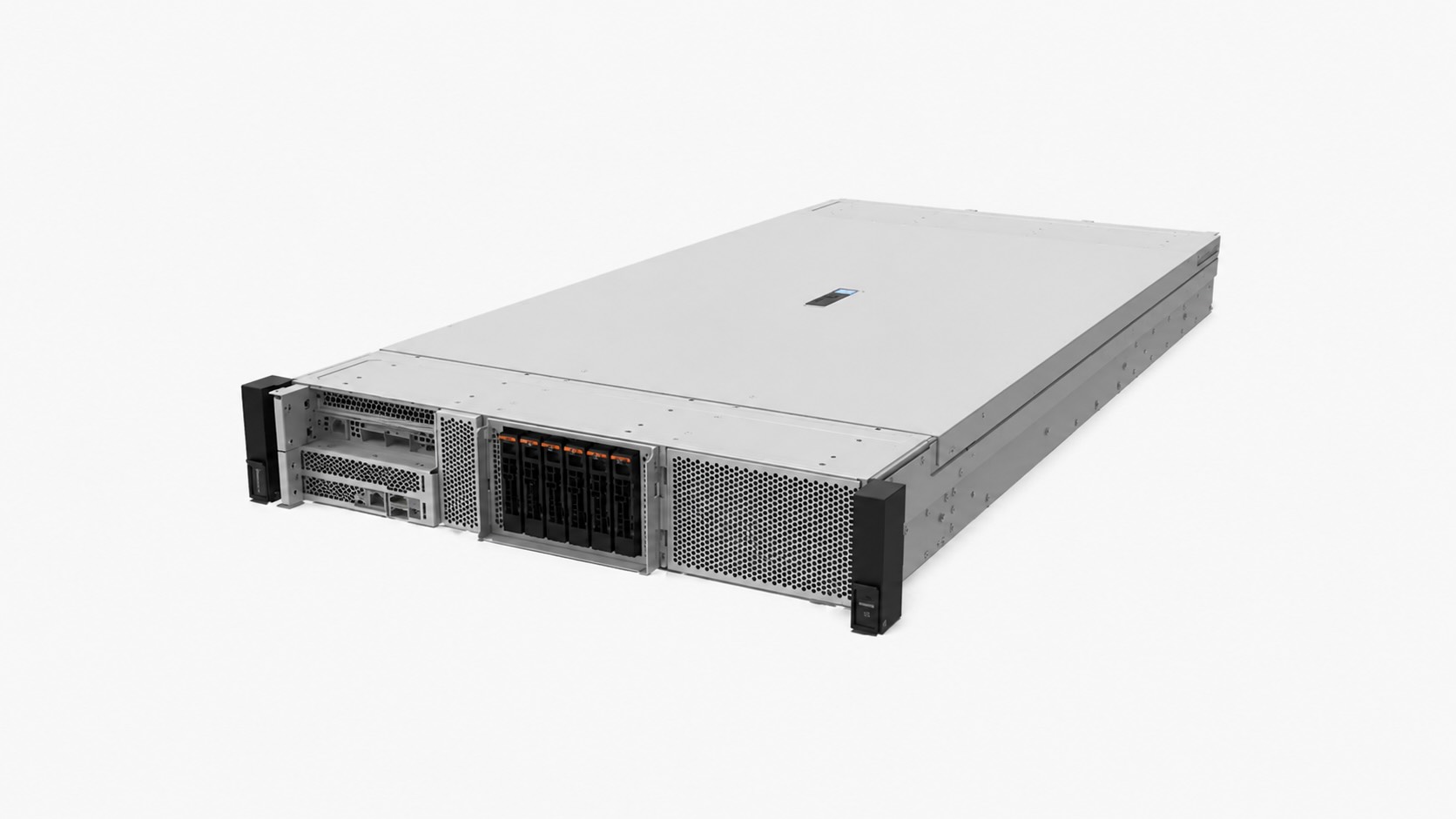

IFT0414 server product image
IFT0414
IFT04142U

2U High-Density AMD Server

A 2U high-density server for dual-socket AMD EPYC platforms. It is suited for enterprise compute, data processing, storage expansion, and high-concurrency inference, with dual CPUs, 24 DDR5 DIMMs, and flexible Anybay / NVMe storage.

Best For
High-concurrency inference / Enterprise compute / Data processing / High-density storage
AMD EPYC 9004 / 9005 platform
2U dual-socket architecture
24 DDR5 6400MT/s DIMMs
2000W / 2700W / 3200W CRPS power support
View Full Specs+

Core Configuration

Platform Model
Reech MGX R723.
Form Factor
2U dual-socket rack server.
Processor
Supports two AMD 9004 / 9005 Series EPYC processors, up to 192 cores per CPU and up to 400W TDP.
Memory
Supports up to 24 DDR5 6400MT/s DIMMs, 1DPC.
Chassis Size
19-inch rackmount chassis, approx. 87.3mm × 438mm × 799mm.

Storage & Expansion

Internal Storage
Supports one M.2 SATA / NVMe device.
Front Storage
Supports up to 12 × 3.5-inch Anybay drives, or 24 × 2.5-inch NVMe SSDs.
Rear Storage
Supports up to 4 × 2.5-inch Anybay drives.

I/O, Power & Management

Right Ear
Supports one DP and two USB 3.0 / USB 2.0 ports.
Left Ear
Supports PWR button LED, UID button LED, system status LED, and OCP indicator.
BMC
Supports PWR button LED, UART, USB 3.0, RJ45-MNG, Mini-DP, UID button LED, and system status LED.
Power
Supports 2000W / 2700W / 3200W CRPS power supplies with 1+1 redundancy, optional titanium-grade PSU, 220V AC, and 240V HVDC.
Cooling
4 × 6056 fan modules with N+1 redundancy and hot-swap support.
Management
Supports web-based management UI, KVM over IP, IPMI, and Redfish.
Server Infrastructure

From Server Selection to Batch Delivery

IFT supports server selection, configuration planning, system testing, and batch delivery for real AI infrastructure deployment needs. Customers can choose the right model based on GPU count, CPU platform, cooling method, power conditions, and rack density.

6U / 5U / 4U / 2UIntel / AMD PlatformsGPU Inference ServersAir / Liquid CoolingIPMI / Redfish ManagementBatch Delivery Support
Talk to Us →
